A lid can fit every development sample and still fail in mass production. Small changes in paper moisture, forming pressure, rim curl, tool wear and storage can make a bowl slightly oval or shift the effective sealing diameter. The result may be a loose lid, excessive application force or leakage during delivery.
Quick answer: specify lid fit as a tolerance system, not a single nominal diameter. Measure the container rim in several directions, define ovality and curl geometry, control the lid’s matching dimensions, and test application and removal force after heat and humidity exposure.
Nominal Diameter Is Only the Starting Point
A catalogue may describe a bowl as 150 mm, but that number might refer to the outside curl, tool family or compatible lid series. Buyers should define the measurement location and method.
Record:
- outside rim diameter;
- inside opening diameter;
- diameter below the curl where the lid engages;
- curl width and height;
- rim thickness; and
- measurement temperature and conditioning.

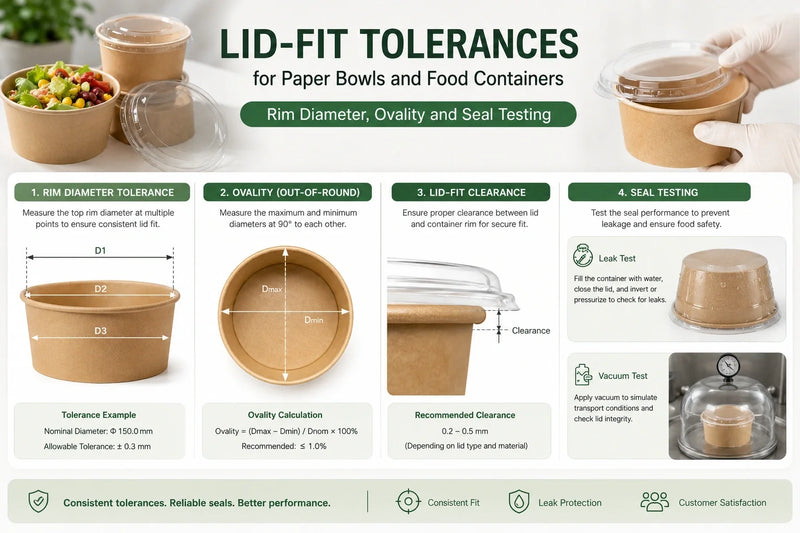

Measure Ovality, Not Just One Diameter
A paper bowl can be round on average but too oval for secure lid engagement. Measure at least two perpendicular directions and calculate:
ovality = maximum measured diameter − minimum measured diameter
For development or complaint analysis, measure more angles around the rim. Mark the orientation of the side seam because forming stresses may create a consistent pattern.
Curl Profile Controls the Mechanical Lock
Many lids engage under or around the paper curl. The curl’s height, radius, compression and surface smoothness affect the snap or friction fit. A rim that looks acceptable from above may have an incomplete curl section that releases the lid locally.
Cut and inspect cross-sections during tool approval. Retain photographs and dimension limits for acceptable and rejected curls.
Tolerance Stack between Container and Lid
The final fit combines variation from both parts. A bowl at its minimum engagement diameter paired with a lid at its maximum diameter may be loose. The opposite combination may require excessive force.
Approve four boundary combinations:
- minimum bowl with minimum lid;
- minimum bowl with maximum lid;
- maximum bowl with minimum lid; and
- maximum bowl with maximum lid.
Boundary samples are more informative than checking only average parts.
Application and Removal Force
“Fits well” is subjective. Measure how much force is needed to apply and remove the lid. Define the test fixture, speed, contact point and number of repetitions. Include manual operator feedback because a lid can meet a force value but be difficult to align during fast service.
Track:
- application force;
- audible or tactile engagement;
- removal force;
- partial-engagement rate;
- rim damage; and
- reclosure performance if required.
Heat, Steam and Humidity Change Fit
Hot food and trapped steam can soften the paper rim. A bowl held in a humid kitchen can absorb moisture before use. Condition samples at the expected storage humidity, then fill with the real food at the maximum temperature and hold for the intended delivery time.
Measure fit immediately after filling and again after holding. Look for local disengagement near the side seam, ovalisation and lid lift caused by internal pressure.
Seal Testing for Delivery
A secure mechanical fit does not always mean liquid-tight performance. Use separate tests for closure retention and leakage:
- upright hold with the maximum portion;
- controlled tilt at defined angles;
- bag-carry simulation;
- vibration and vehicle movement;
- stack load; and
- opening after the full holding time.
Do not invert a vented or non-leakproof pack and then use that unrealistic result as the only acceptance criterion.
Production Sampling Plan
Measure more than the first pieces from a run. Forming tools can warm up, paper reels can change and cavities can behave differently. A sampling plan should cover:
- start, middle and end of the production run;
- every forming cavity or machine lane;
- more than one board or material lot;
- container and lid lots paired at random; and
- samples after normal transport and storage.
Golden Samples and Gauge Control
Retain approved container-and-lid pairs under controlled storage. Calipers, ring gauges and force-test fixtures should have defined calibration or verification schedules. A worn gauge can make a stable process appear to drift or hide a real shift.
Complaint Investigation
When a customer reports loose lids, request the container and lid together, plus lot codes, food temperature, photographs and storage history. Measuring only the lid or only the bowl can miss the tolerance interaction.
Compare complaint samples with retained production samples and the approved boundary combinations. Check whether the lid and container were from the intended compatible series.
Buyer Specification Checklist
- Nominal dimensions with measurement locations.
- Diameter and ovality tolerances.
- Curl profile and visual defects.
- Lid engagement dimensions.
- Application and removal-force ranges.
- Hot-fill and humidity conditioning.
- Leak and delivery test methods.
- Sampling frequency and cavity identification.
- Golden-sample retention.
- Change-notification requirements.
Control the Pair, Not Two Separate Products
The bowl and lid should be developed, sampled and approved as one closure system. Purchasing them from separate sources without shared tolerances increases risk.
